General
|
| Transducer frequency |
Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) |
| Transducer power |
Traditional 350 W; ClearVü/SideVü 500 W |
| Transducer beamwidth |
Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz |
| Transducer maximum depth |
Traditional: 800 ft freshwater; ClearVü: 400 ft; SideVü: 500 ft |
| Transducer cable length |
25 ft |
| Transducer depth/speed/temperature |
Depth and temperature |
| Transducer number of pins |
12 |
| Transducer supported deadrise/transom angles |

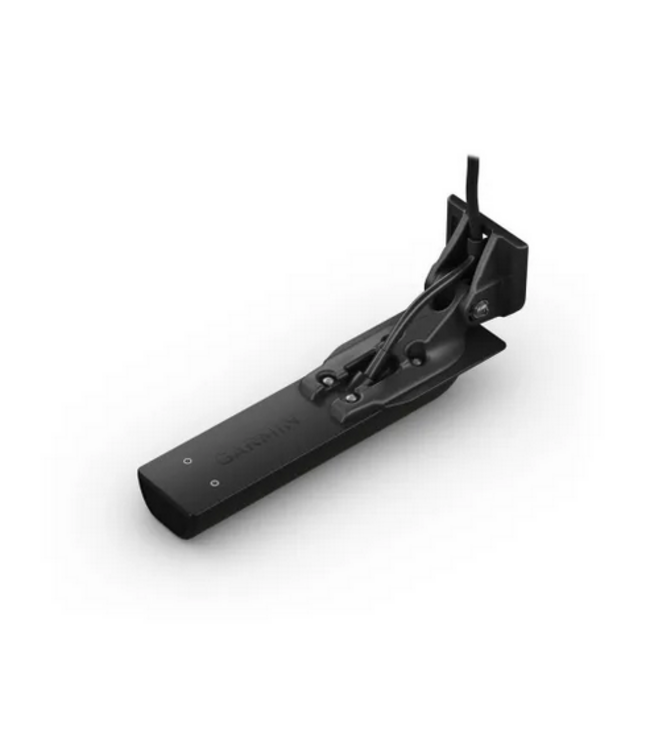

0°-70° degree transom (GT56UHD-TM) |
Transducer Support
|
| Transducer frequency |
Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) |
Dimensions (without mount): 218.5 mm x 51.8 mm x 27.7 mm
